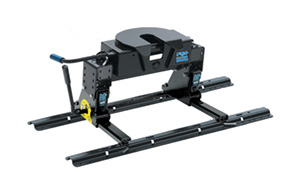

15K PROFESSIONAL SERIES 5TH WHEEL HITCH



An economical Fifth Wheel Hitch that doesn't act like one. The Professional Series offers features only found in larger units. Installs and removes easily for full bed access.


PN30056

PN 30076

  • Rounded slide bar locking mechanism   designed for automatic latching with cushion grip handle

  • Head pivots forward-to-back.

  • Skid plate pivots 5° side-to-side for easier hookup on uneven ground and smoother towing

  • Locking jaw handle and tab for locking padlock (padlock not included)

  • Vertically adjusts from 13-12" to 17-12" to best match-up with different trailers

  • 15,000 lb. towing capacity / 3,750 lb. pin weight capacity

  • Wide stance one-piece legs for improved stability

  • 3 year warranty





Part #

Qty.

Description

 Price
30056  1 15K 5TH Wheel Professional Series Complete
(includes #30035 rail & installation kit)
 Installation Instructions		 $417.39
30076 1 Pro Series 15K 5th Wheel w/Square Tube Slider $592.19
58165 1 Fifth Wheel Head Only $230.00
58180 Handle Kit $36.63
58179 1 Head support $103.44
58181 1 5th Wheel Head and Head Support $398.99
30727 1 5th Wheel Leg $126.49

Tech tips
Fifth Wheels will not fit 2004 Ford F-150 4 door Super Cab and Super Crew with 5-1/2' bed.
- unit shipped in two boxes.
Head and saddles in one (102 lbs)
Rails and mounting brackets in one (62 lbs)



FIFTH WHEEL RAILS & INSTALLATION KITS



Universal Installation Kits  Application Guide
Make  YEARS   Model Rail Kit Require Adapter Kit
Chevrolet/GMC 88-08 1500/2500/3500 30035
  92-08 3500 (4 Door) 30035
Dodge 94-04 Dakota 30035
  94-08 1500 30035
  94-02 2500/3500 30035
  03-08 2500 (Has Overload Springs) 30035 58186
  03-08 3500 30035 58186
Ford 04 F-150 Heritage Series 30035
  04-07 F-150 30080
  80-03 F-150 30035
  80-07 F-250/F-350 30035
Toyota 00-06 Tundra Reg. Cab (Long bed Only) 30035 58197
  07 Tubdra (except Crew Max) 30035 58309


30035/30080
Required Adapter Kits Sold below



 58058
Part # Qty. Description WT Price

30035

 1  Fifth Wheel Rails and Installation Kit, Includes Brackets and Hardware 50.0 $115.00
30080 1 Fifth Wheel Rails and Installation Kit, Includes Brackets and Hardware 60.0 $139.95

58058

 1 Fifth Wheel Mounting Rails Only
Hardware Not Included		 50.0 $66.50



58166


58186


58023


58197


58208



Adapter Kits

Part #
Instructions		 Qty. Description WT Price
58208 1 Chevrolet Composite Bed Kit 24.00 $85.95
58023 1 2002-2008 Dodge RAM 1500, 2003-2008
Dodge RAM 2500 w/o Overload Springs)5th Wheel Bracket Kit 		3.00 $16.95
58166 1 5th Wheel Tube Spacer Kit
2002-2008 Dodge RAM 1500,
2003-2008 Dodge RAM 2500/3500		 1.00 $8.95
58186 1 5th Wheel Bracket Kit
(2003-2008 Dodge RAM 2500/3500 w/Overload Springs)		 12.00 $59.95
58197 1 5th Wheel Spacer Kit Qty. 8 Additional 3/16" Spacers
2000-2006 Toyota Tundra		 1.00 $9.95
58426   5th Wheel Bracket Kit
(2004-2008 Ford F-150 New Body Style)		 15.00 $85.95
58309   2007-2008 Toyota Tundra Fifth Wheel Spacer Kit
, Includes (2) 1/2" x 1-1/4" Spacer, (3) 1/2"-13 x 1-3/4" Carriage Bolt,
(3) 1/2"-13 x 3" Carriage Bolt, (2) Bevel Washer)		 3.00 $29.95


CUSTOM INSTALLATION BRACKETS

•

  • 5th Wheel installation guide (beds need to be at least 6' long)

  • Reduces install time by up to 50%

  • Rail kit #50858 required for brackets (Sold Above)

  • All hardware included

Rail Kit 58058 required.





• 5th wheel installation guide (beds need to be at least 6' long)

CHEVROLET Dodge Ford GMC Toyota
 Model / Style Years Part / Instructions

Price



CHEVROLET
 Pickup, Silverado
   1500 LD 6 ft. Bed 		99-06 50041 $125.64
   1500 LD 6 ft. Bed 99-06 50061 $149.95
   1500 LD 8 ft. Bed 99-06 50041 $125.64
   1500 LD 8 ft. Bed 99-06 50061 $149.95
   2500 LD 6 ft. Bed 99-04 50041 $125.64
   2500 LD 6 ft. Bed 99-04 50061 $149.95
   2500 LD 8 ft. Bed 99-04 50041 $125.64
   2500 LD 8 ft. Bed 99-04 50061 $149.95
   1500 HD 6 ft. Bed 01-06 50041 $125.64
   1500 HD 6 ft. Bed 01-06 50061 $149.95
   2500 HD 6 ft. Bed 01-06 50041 $125.64
   2500 HD 6 ft. Bed 01-06 50061 $149.95
   2500 HD 8 ft. Bed 01-06 50041 $125.64
   2500 HD 8 ft. Bed 01-06 50061 $149.95
   3500 Series 01-06 50041 $125.64
   3500 Series 01-06 50061 $149.95
   1500 LD 6 ft. Be (New Body Style) 07-08 50061 $149.95
   1500 LD 8 ft. Bed (New Body Style) 07-08 50061 $149.95
   2500 HD 6 ft. Bed (New Body Style) 07-08 50061 $149.95
   2500 HD 8 ft. Bed (New Body Style) 07-08 50061 $149.95
   3500 HD 6 ft. Bed (New Body Style) 07-08 50061 $149.95
   3500 HD 8 ft. Bed (New Body Style) 07-08 50061 $149.95
   Classic 1500 HD 6 ft. Bed 07 50041 $125.64
   Classic 1500 HD 6 ft. Bed 07 50061 $149.95
   Classic 1500 LD 6 ft. Bed 07 50041 $125.64
   Classic 1500 LD 6 ft. Bed 07 50061 $149.95
   Classic 1500 LD 8 ft. Bed 07 50041 $125.64
   Classic 1500 LD 8 ft. Bed 07 50061 $149.95
   Classic 2500 HD 6 ft. Bed 07 50041 $125.64
   Classic 2500 HD 6 ft. Bed 07 50061 $149.95
   Classic 2500 HD 8 ft. Bed 07 50041 $125.64
   Classic 2500 HD 8 ft. Bed 07 50061 $149.95
   Classic 3500 Series 07 50041 $125.64
   Classic 3500 Series 07 50061 $149.95


DODGE
 Pickup, Ram, Full Size
   1500 Only, Except Mega Cab 		02-08 50040 $234.89
   2500 Heavy Duty, Except Mega Cab & Models with Overload Springs 03-08 50040 $234.89


FORD
 F-150
   New Body Style, Except Models w/5-1/2 ft. Bed 		04-08 50081 $125.64
 F-150 & F-250 Light Duty
   Styleside 		97-03 50042 $120.18
 F-150 Heritage
   Styleside (Old Body Style) 		04 50042 $120.18
 F-250 & F-350 Super Duty
   Pickups Only - Will Not Fit Cab & Chassis 		99-04 50043 $103.79


GMC
 Pickup, Sierra
   1500 LD 6 ft. Bed 		99-06 50041 $125.64
   1500 LD 6 ft. Bed 99-06 50061 $149.95
   1500 LD 8 ft. Bed 99-06 50041 $125.64
   1500 LD 8 ft. Bed 99-06 50061 $149.95
   2500 LD 6 ft. Bed 99-04 50041 $125.64
   2500 LD 6 ft. Bed 99-04 50061 $149.95
   2500 LD 8 ft. Bed 99-04 50041 $125.64
   2500 LD 8 ft. Bed 99-04 50061 $149.95
   1500 HD 6 ft. Bed 01-06 50041 $125.64
   1500 HD 6 ft. Bed 01-06 50061 $149.95
   2500 HD 6 ft. Bed 01-06 50041 $125.64
   2500 HD 6 ft. Bed 01-06 50061 $149.95
   2500 HD 8 ft. Bed 01-06 50041 $125.64
   2500 HD 8 ft. Bed 01-06 50061 $149.95
   3500 Series 01-06 50041 $125.64
   3500 Series 01-06 50061 $149.95
   1500 LD 6 ft. Bed (New Body Style) 07-08 50061 $149.95
   1500 LD 8 ft. Bed (New Body Style) 07-08 50061 $149.95
   2500 HD 6 ft. Bed (New Body Style) 07-08 50061 $149.95
   2500 HD 8 ft. Bed (New Body Style) 07-08 50061 $149.95
   3500 HD 6 ft. Bed (New Body Style) 07-08 50061 $149.95
   3500 HD 8 ft. Bed (New Body Style) 07-08 50061 $149.95
   Classic 1500 HD 6 ft. Bed 07 50041 $125.64
   Classic 1500 HD 6 ft. Bed 07 50061 $149.95
   Classic 1500 LD 6 ft. Bed 07 50041 $125.64
   Classic 1500 LD 6 ft. Bed 07 50061 $149.95
   Classic 1500 LD 8 ft. Bed 07 50041 $125.64
   Classic 1500 LD 8 ft. Bed 07 50061 $149.95
   Classic 2500 HD 6 ft. Bed 07 50041 $125.64
   Classic 2500 HD 6 ft. Bed 07 50061 $149.95
   Classic 2500 HD 8 ft. Bed 07 50041 $125.64
   Classic 2500 HD 8 ft. Bed 07 50061 $149.95
   Classic 3500 Series 07 50041 $125.64
   Classic 3500 Series 07 50061 $149.95


TOYOTA
 Tundra
   w/Regular Cab & Long Bed Only 		00-06 50059 $125.64
