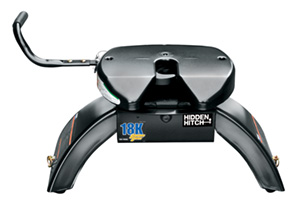

18K SIGNATURE SERIES 5TH WHEEL HITCH


    Towing has never been easier when using the Signature Series system. The Signature Series is the ultimate heavy duty towing platform for hauling fifth wheel or gooseneck trailers. This system has been designed to allow the use of Signature Series Fifth Wheels or Gooseneck products.

    The Signature Series Fifth Wheels have the features that consumers have always asked for. From the large stamped round head to the wider footprint these Fifth Wheels have all the extras designed into them.

    The Signature Series Rail Kit ties your truck and the Fifth Wheel or Gooseneck together. This rail kit is vehicle specific, so you are ensured of a perfect fit every time. The unique feature of the rail kit is the "Power Puck" system, which provides easy installation and securing of the Signature Series Fifth Wheel or Gooseneck. This rail kit provides full use of the truck bed when Fifth Wheel or Gooseneck is dismounted.

FEATURES
  • 18,000 lb. gross / 4,500 lb. pin weight capacity.
  • Improved 4 way head pivot
  • 4 degree side to side head pivot for better control
  • 16,000 lbs. gross / 4,000 pin weight capacities
  • 2 way (front to back) 10? head pivot
  • 14" - 18" vertical adjustment
  • Forged signal jaw
  • Increased King Pin/jaw contact design
  • Self latching jaw design
  • King Pin indicator
  • Wider footprint for increased stability
  • Stamped rounded head
  • Wider 9" (vs 6") kingpin funnel area on head
  • Vehicle specific under bed mounting kits
  • Lockable mount handles (lock not included)
  • 1/4 turn handle "quick lock" mount system
  • Non-pin mounting reduces slop
  • Contemporary 21st century appearance
  • New folding tab washers for easy of installation
  • Seven year limited warranty
  • Extended length handle
    -Pre-Assembled Fifth Wheel Units
    -Saves approximately one hour of assembly time
    -Foot assembly is hand tightened
    -Includes wrench to tighten foot assembly
    -Shipped in one convenient carton

Designed for short bed and extended cab pickups to provide additional turning clearance and to prevent damage to truck and trailer in tight locations at low speeds.

  • 10" Travel
  • Fits both 16K and 18K models
  • Round Tube design allows for smoother operation
  • Operation from either side of unit
  • Angled steel rollers reduces binding
  • Operates even when vehicle not in a straight line.
  • Operation up to 45 degree angle
  • Lock pin for additional security
  • Rubber grip handle for comfortable operation
  • Tapered holes for easier pull pin engagement

Part #

Qty.

Description

WT

 Price

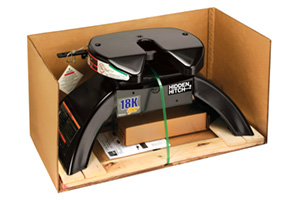

50847 1  18K Signature Series - Preassembled
PDF  Installation Instructions		 150.0 $589.95
50285 1 18K Signature Series w/Slider - Preassembled
(rail kit sold separately)		 170.0 $944.95
50270 1 Signature Series Slider, for use w/Signature Series 5th Wheels only 30.0 $344.95


Bolt Kit
Part No.   Description WT. lbs Price
58255

18K & 24K Signature Series 5th Wheel Pointed Bolt Kit
Makes Installation of Rail Kits easier.

 1.0 $10.00



Signature Series Rail Kits

Signature Series Rail Kits are vehicle-specific and are for use with the Signature Series Fifth Wheels Only.
  • "Power Puck" mounting system provides uninhibited use of truck bed when fifth wheel is dismounted.
  • Wider platform/mounting footprint (increased stability).
  • Custom-fit under-bed mounting system
  • Machined flushed mount platform receptacles.
Part No. YRS   MAKE/MODEL WT. lbs Price
30060 99-06

Chevrolet Pickup, Silverado 1500 LD 8 ft. Bed
GMC Pickup, Sierra 1500 LD 8 ft. Bed

 50.0 $104.95
30060 99-04

Chevrolet Pickup, Silverado 2500 LD 8 ft. Bed
GMC Pickup, Sierra 2500 LD 8 ft. Bed

 50.0 $104.95
30060 01-06

Chevrolet Pickup, Silverado 2500 HD 8 ft. Bed
GMC Pickup, Sierra 2500 HD 8 ft. Bed

 50.0 $104.95
30060 2007

Chevrolet Pickup, Silverado Classic 2500 HD 8 ft. Bed
GMC Pickup, Sierra Classic 2500 HD 8 ft. Bed

 50.0 $104.95
30061 99-06

Chevrolet Pickup, Silverado 1500 LD 6 ft. Bed
GMC Pickup, Sierra 1500 LD 6 ft. Bed

 50.0 $104.95
30061 99-04

Chevrolet Pickup, Silverado 2500 LD 6 ft. Bed
GMC Pickup, Sierra 2500 LD 6 ft. Bed

 50.0 $104.95
30061 01-06

Chevrolet Pickup, Silverado 1500 HD 6 ft. Bed
GMC Pickup, Sierra 1500 HD 6 ft. Bed

 50.0 $104.95
30061 01-06

Chevrolet Pickup, Silverado 2500 HD 6 ft. Bed
GMC Pickup, Sierra 2500 HD 6 ft. Bed

 50.0 $104.95
30061 2007

Chevrolet Pickup, Silverado Classic 1500 HD 6 ft. Bed
GMC Pickup, Sierra Classic 1500 HD 6 ft. Bed

 50.0 $104.95
30061 2007

Chevrolet Pickup, Silverado Classic 1500 LD 6 ft. Bed
GMC Pickup, Sierra Classic 1500 LD 6 ft. Bed

 50.0 $104.95
30061 2007

Chevrolet Pickup, Silverado Classic 2500 LD 6 ft. Bed
GMC Pickup, Sierra Classic 2500 LD 6 ft. Bed

 50.0 $104.95
30061 07-08

Chevrolet Pickup, Silverado 2500 HD 6 ft. Bed (New Body Style)
GMC Pickup, Sierra 2500 HD 6 ft. Bed (New Body Style)

 50.0 $104.95
30061 07-08

Chevrolet Pickup, Silverado 3500 HD 6 ft. Bed (New Body Style)
GMC Pickup, Sierra 3500 HD 6 ft. Bed (New Body Style)

 50.0 $104.95

30062

 01-06

Chevrolet Pickup, Silverado 3500 Series
GMC Pickup, Sierra 3500 Series

 50.0 $104.95

30062

 2007

Chevrolet Pickup, Silverado Classic 3500 Series
GMC Pickup, Sierra Classic 3500 Series

 50.0 $104.95
30063 88-00

Chevrolet/GMC C/K Series, (old body style)

 50.0 $104.95
30082 01-06 Chevrolet Pickup, Silverado 3500 Series
GMC Pickup, Sierra 3500 Series  		80.0 $239.95
30082 01-06 Chevrolet Pickup, Silverado 2500 HD 8 ft. Bed
GMC Pickup, Sierra 2500 HD 8 ft. Bed  		80.0 $239.95
30082 2007 Chevrolet Pickup, Silverado Classic 2500 HD 8 ft. Bed
GMC Pickup, Sierra Classic 2500 HD 8 ft. Bed  		80.0 $239.95
30082 2007 Chevrolet Pickup, Silverado Classic 3500 Series
GMC Pickup, Sierra Classic 3500 Series  		80.0 $239.95
30082 07-08 Chevrolet Pickup, Silverado 2500 HD 8 ft. Bed (New Body Style)
GMC Pickup, Sierra 2500 HD 8 ft. Bed (New Body Style)  		80.0 $239.95
30082 07-08 Chevrolet Pickup, Silverado 3500 HD 8 ft. Bed (New Body Style)
GMC Pickup, Sierra 3500 HD 8 ft. Bed (New Body Style)   		80.0 $239.95
30064 04-08

 Ford F-150 New Body Style, Except Models w/5-1/2 ft. Bed

 50.0 $104.95
30065 97-03

Ford F-150/F-250 LD, except F-150 Super Crew

 50.0 $104.95
30065 2004

Ford F-150 Heritage (Old Body Style)

 50.0 $104.95
30073 99-07

Ford F-250 & F-350 Super Duty Pickups Only - Will Not Fit Cab & Chassis

70.0 $230.00
30073 2008

Ford F-250 & F-350 Super Duty Pickups Only - Will Not Fit Cab & Chassis

70.0 $230.00
30073 2008

Ford F-450 Super Duty Pickups Only - Will Not Fit Cab & Chassis

70.0 $230.00
30067 02-08

 Dodge Pickup, Ram, Full Size 1500 Only, Except Mega Cab

 50.0 $104.95
30067 03-08

 Dodge Pickup, Ram, Full Size 2500/3500 Heavy Duty, Except Mega Cab

 50.0 $104.95
30069 94-01

 Dodge Pickup, Ram, Full Size

 50.0 $104.95
30069 2002

 Dodge Pickup, Ram, Full Size 2500/3500 Only

 50.0 $104.95
30074 02-08 Dodge Pickup, Ram, Full Size 1500 Only, Inc. Mega Cab 80.0 $249.95
30074 03-08 Dodge Pickup, Ram, Full Size 2500 Heavy Duty, Inc. Mega Cab   80.0 $249.95
30074 03-08 Dodge Pickup, Ram, Full Size 3500 Heavy Duty, Inc. Mega Cab & Dually  80.0 $249.95
30078 00-06 Toyota Tundra w/Regular Cab & Long Bed Only   71.0 $214.95



UNIVERSAL RAILS AND INSTALLATION KIT
Includes all brackets and hardware to install on most full-size pick-ups. The rails are universal and will accept most popular 5th wheel brands.



Part #

Qty.

Description

WT

 Price
50035  1  Rails and Installation Kit
Does Not fit
2002-03 Dodge Pick-ups		 50.0 $93.45
50079  1  2002-03 Dodge Pick-ups
Rails and Installation Kit		 50.0 $119.85



50037_38_39

height="29"

50033 Required

CUSTOM INSTALLATION KITS
• Reduces install time by up to 50% over universal kit
• Includes all brackets and hardware to install on the following full size pick-ups.
    Rail Kit 50033 required, see below
  Tech tips
  No Drilling on short-box models



Part #

Qty.

Description

WT

 Price
50037 1 99-Up, Chev/GMC
New Body Style, Full Size Pick-ups		 28.20 $104.45
50038 1 97-Up, Ford Light Duty
Full Size Pick-ups		 27.60 $98.95
50039 1 99-Up, Ford Heavy Duty
Full Size Pick-ups		 30.0 $64.85
50033 1 Rail Kit Required 42.0 $65.95
