WEIGHT DISTRIBUTING SWAY CONTROL



    Trailer sway must always be considered in trailer towing. Unwanted sway turns a pleasant towing situation sour. Many factors can contribute to trailer sway - the design of the trailer, the suspension, tire inflation pressures, configuration of the tow vehicle, towing speeds and hitch weight. Therefore, Hidden Hitch has devised several options to resist or prevent trailer sway.

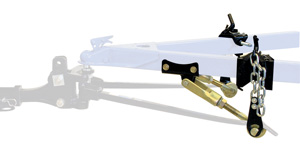

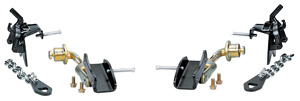

DUAL CAM HIGH PERFORMANCE SWAY CONTROL


    This patented product is the premier method for controlling trailer sway. Unlike the friction sway control, this approach works to control sway from the start rather than just resisting sway once it's begun. And it works only when needed. When towing in a straight line, the cams on either side of the trailers A-frame are locked in position. This essentially creates a "rigid" connection between tow vehicle and trailer and minimizes the effects of induced sway caused by high crosswinds or passing vehicles. Usually the cams ride in a detent, locked-in position, even on fairly sharp curves. However, when cornering maneuvers are required, the cams automatically slide out of their detent to permit full radius turns. Yet when the maneuver is short and abrupt, like that encountered in the event of a sudden swerve or a wheel dropping off the road, the cams seek a straight-line towing angle that helps the tow vehicle retain control. The advantage of the Dual Cam system is its ability to forestall sway in addition to sway resistance. It works to hold down the start of swaying activity while at the same time allowing free and easy vehicle and trailer interaction. Another advantage of the Dual Cam system is that it's installed on the trailer and therefore doesn't require adjustment every time the towing vehicle and trailer are hooked up, unless hitch weight or tow vehicle loading are changed.


Part #

Qty.

Description WT Price
26102 1 Dual Cam HP Sway Control
PDF  CLICK HERE FOR INSTRUCTIONS
26.0 $179.95
For Shanks, Hitch Balls or Sway Control > Click Here


SWAY CONTROL BARS


Many trailers are prone to sway problems due to windy conditions or other factors. Sway Control Bars work between the hitch and the trailer to resist sway. All Hidden Hitch weight distributing heads are equipped to accept sway controls.



PT#
26660
  Includes All Parts Shown Above



PT#
3473

Part #

Qty.

Description

WT

Price
3400 1 Sway Control - can be used on Right or Left Side (Boxed) 15.0 $129.00
26660 1 Sway Control Ball Mount Bar, Weld On  1.50  $129.95
58062 1 Trailer Tongue Plate Ball  2.0  $29.95


POLE TONGUE ADAPTER KIT

   A Pole Tongue Adapter is used as a mounting platform for the Lift Brackets of a Weight Distributing Hitch Systems when a trailer has a pole or straight      tongue rather than an A-frame Tongue.

Part #

Qty.

Description

Gross Trailer Wt. Tongue Wt.

WT

Price
3380 1 Pole Tongue Adapter Kit 7,500 lbs 750 lbs 25.00 $84.95
58393 1 Pole Tongue Adapter Kit

12,000 lbs

1,200 lbs.

25.00 $189.95
