  • Powers the trailer's stop, turn and tail/running lights directly from the tow vehicle's battery
  • Virtually eliminates draw on the vehicle's taillight circuits
  • Maximum trailer light brightness
  • May be used on 2 or 3 wire systems. No converter is required
  • No need for a heavy duty flasher

Part No. Description Wt  Price

Buy Now

119146 ModuLite, up to 10 amps per circuit
  Installation Instructions
0.50 $54.53
119179 ModuLite Protector, Circuit protection module
  Installation Instructions
 0.60 $39.95
119190 ModuLite HD, up to 20 amps per circuit
Installation Instructions
 0.76 $54.95


Which ModuLite Do I Need?

 Wiring Kit


118151

Wiring Kit for Installing All ModuLite Adapters
Wiring kit 118151 comes with everything needed to install a ModuLite including
20 ft. of special undercar 12 ga. wire, fuse, fuse holder and attaching terminals.

0.56

$13.95



Modulite Protector & Wiring Kits



11918
0

ModuLite® Protector w/Integrated Circuit Protection & Installation Kit
 (119179& 118151)
Installation Instructions

1.0

$49.95



What is a ModuLite, ModuLite Lite And ModuLite HD?
A ModuLite is a trailer light power supply module which provides power to the trailer lights directly from the tow vehicle's battery. By powering the trailer lights in this manner, the tow vehicle's tail, turn and stop light circuits are not exposed to any additional loads.

Why Is This Important?
In many cases the tail, turn and stop light circuits of today's vehicles are connected with light gauge wire, designed only to carry enough current to supply the lights the vehicle is equipped with. Additionally, some vehicles are equipped with sensitive electronic devices, such as "lamp-out" sensors, which are designed to monitor the vehicle's electrical system and warn the driver of problems with that system.

The additional load of trailer lights on these devices can cause them to react falsely and in some cases may lead to their failure.

Which Vehicles Need A ModuLite?

  • Is the vehicle equipped with any option packages that include a lamp-out sensor or other electronic devices that could be damaged by attaching trailer lights directly to the vehicle's electrical system? If so, a ModuLite is required.


  • Is the trailer being towed equipped with more that one light assembly per side? Does it have clearance lights, dual tail, turn or stop lights or any other equipment that will impose an extra load? If so, a ModuLite is required.

  • Is this the only trailer the driver will ever tow? Consider future requirements as well as current ones. In future applications, a ModuLite may be required.

Are There Other Ways To Determine The Need For A ModuLite?
Yes. Vehicle manufacturers caution consumers against adding additional loads to electrical circuits. Consult the vehicle owner's manual when recommending trailer wiring. The following are two examples from owner's manuals:

Jeep Grand Cherokee
"Do not connect a trailer lighting system directly to the lighting system of your vehicle. Use an approved trailer wiring harness. Failure to do so could damage the vehicle electrical system and/or result in personal injury."

Dodge Ram Pickup
"Towing a trailer equipped with more than the standard lighting (turn, tail, stop and back-up lamps) may cause an abnormally high electrical draw through the headlamp switch, causing the switch to fail."

Does A ModuLite Take The Place Of A Taillight Convertor?
Yes. ModuLites are designed for use on vehicles that have separate tail, turn and stop light circuits and converts them to standard trailer light wiring configuration. ModuLite and ModuLite HD also feature a hazard flasher override circuit. If the hazard flashers are engaged and brakes are applied, brake lights will be shown on the trailer. This is an added safety feature that most taillight convertors do not provide.

Can I Still Use A ModuLite If I Don't Need A Convertor?
Yes. They can be used on any vehicle that requires a reduction of load on its electrical system.

What Other Features Do ModuLites Provide?
Because a ModuLite receives its power directly from the tow vehicle's battery and not the turn signal circuit, the need for a heavy duty turn signal flasher is eliminated. Their advanced circuitry provides maximum trailer light brightness.

How Long Does It Take To Install A ModuLite?
Approximately 30 to 45 minutes depending on the difficulty of running the power supply wire from the battery to the rear of the vehicle.

What Does The Wiring Kit (18151) Contain?
Wiring kit 18151 comes with everything needed to install a ModuLite including 20 ft. of special undercar 12 ga. wire, fuse, fuse holder and attaching terminals.

Which ModuLite Do I Need?
To determine which trailer light power module you may need, follow these basic guidelines. Add the number of amps required on the trailer you will be towing (see below). If the total is less than 4 amps per light circuit, ModuLite-Lite is recommended. If the total is between 4 and 10 amps ModuLite is recommended. If the total is more than 10 amps, a ModuLite HD is required. Remember to also consider your future towing needs. While ModuLite-Lite may be adequate for their current trailer, a different trailer may have a higher amperage requirement making ModuLite or ModuLite HD the better choice.

Estimating Trailer Amperage Per Circuit

Stop-Turn Lights

2 Amps each

Taillights

1 Amp each

Clearance and Marker Lights

1/2 Amp each



2 Wire System

2 Wire System

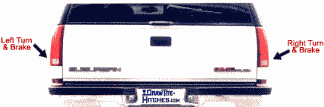

Brake & Turn Signal Use Same Bulb-Same circuit
With Brake Applied and Right Turn Signal On
You Only see the brake light on the left, the turn signal flashes on the right.
May Use ModuLite or ModuLite HD (not ModuLite Lite)





3 Wire System



3 Wire System

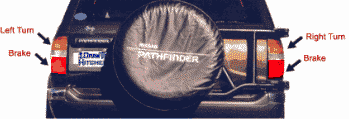

Brake & Turn Signal Use Separate Bulbs - Separate circuits
With Brake Applied and Right Turn Signal On
You see the brake light on the left & right, the turn signal flashes on the right with a separate bulb (usually amber colored).
May Use ModuLite Lite, ModuLite or ModuLite HD

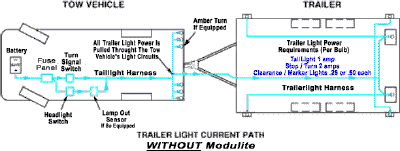

Without a ModuLite, all the additional power required to supply the trailer lights (represented by the blue line) passes through the vehicle's electrical system including the fuse panel, turn signal switch, taillight harness and lampout sensor if so equipped.

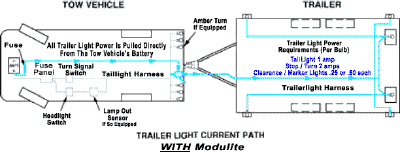

With ModuLite the additional power required to supply the trailer lights (represented by the blue line) is supplied directly from the battery. Only a minute amount of power is required from the fuse panel, turn signal switch, taillight harness and lampout sensor, if so equipped, to signal the ModuLite when to illuminate the trailer lights
