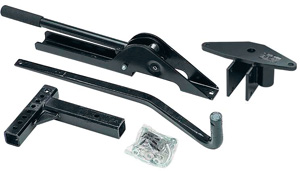

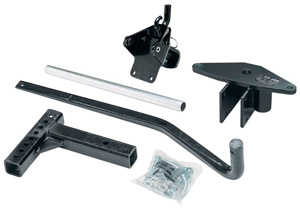

The
Light-Duty Weight-Distributing system is especially designed
for use with lighter weight trailers and pop-up campers. The
center mount single bar is contoured to avoid interference
with center mounted jacks. Easy to set up and use. The lift
mechanism is designed to prevent interference with gas
bottles or battery trays. Works with any 2" receiver.
A-Frame trailers must have adequate mounting space for the
cross-brace bracket. The cross-brace bracket must be mounted
18" to 26" rearward of the center of the coupler
ball receptacle. Make sure the trailer is clear of any gas
bottles, battery trays, or other obstructions within this
area. The integrated lifter bar feature provides the
advantage of allowing a single person to operate from one
side of the trailer. This system works with both side and
center mounted tongue jacks. The sway control platform
allows you to use a friction sway control on control
platform allows you to use a friction sway control on either
side of the trailer. |
- Welded Head with
Weight-Distributing Shank
- Models for Both A-Frame
and Pole-Tongue Trailers
- Rated up to 4,000/400
lbs. Weight-Distributing
- Innovative Single Spring
Bar Design
- Integral Sway Control
Platform
- Assembly Hardware, and
Chains Included
-
Black
Powder Coat Finish
|
|
|
|
|
|
|
|
|
- Welded Head with
Weight-Distributing Shank
- Models for Both A-Frame
and Pole-Tongue Trailers
- Rated up to 4,000/400
lbs. Weight-Distributing
- Innovative Single Spring
Bar Design
- Integral Sway Control
Platform
- Assembly Hardware, and
Chains Included
-
Black Powder
Coat Finish
|
|
|
|
|
|
|
|
|
|
|
WEIGHT
DISTRIBUTION SHANKS
|
|
|
|
All
Trunnion Weight Distribution Kits require a shank bar sold separately. In
some cases, a longer shank or a deeper drop is required. Hidden Hitch
provides a variety of alternative shank sizes to choose from.
|
|
|
|
Shank
Part # |
Capacity |
Length
(L1)
|
Style |
With Round Bar Style
Head |
With Trunnion Style
Head |
Price |
|
|
Length
R.B.
(L2) |
Drop R.B.
(D) |
Rise R.B.
(R) |
Length
T.
(L2) |
Drop R.B.
(D) |
Rise T.
(R) |
|
3210 |
1,400 |
10" |
1 |
12.5" |
2.375" |
5.625" |
11.875" |
2.375" |
6.375" |
$79.95 |
 |
|
3211 |
1,400 |
11" |
2 |
12.5" |
5.625" |
8.875" |
11.875" |
4.875" |
9.625" |
$89.95 |
|
|
3212 |
1,400 |
12" |
1 |
14.5" |
2.375" |
5.625" |
13.875" |
1.625" |
6.375" |
$94.95 |
|
|
3213 |
1,400 |
12" |
2 |
14.5" |
5.625" |
8.875" |
13.875" |
5.625" |
9.625" |
$94.95 |
|
|
3214 |
1,400 |
14" |
1 |
16.5" |
2.375" |
5.625" |
15.875" |
2.375" |
6.375" |
$99.95 |
|
|
3215 |
1,400 |
11" |
2 |
13.5" |
6.875" |
10.125" |
13.125" |
6.875" |
10.875" |
$94.95 |
|
|
3344 |
1,400 |
11" |
3 |
13.5" |
8.75" |
N/A |
12.875" |
8.75" |
N/A |
$89.95 |
|
|
|
|
|
ADJUSTABLE
SHANK
 |
|
Part
# |
Description |
TOTAL
HT. ADJ |
LENGTH
(L) |
RISE
(R) |
DROP
(D) |
RATING |
Price |
|
|
63970 |
Adjustable Shank 2" Sq. |
6-3/4" |
13" |
6" |
1-1/4" |
1,400
/ 14,000 |
$84.95 |
|
|
|
TOW
BEAST WD SHANK
Designed for use with the Tow Beast
Class V Receiver and Tow Beast Trunnion Weight Distributing system.
This unit is rated at 17,000 lbs. Weight Distributing.
|
|
Part
# |
Description |
Price |
|
|
54976 |
Tow
Beast®, W.D. Shank, Rating 1,700 lbs. (TW), 2-1/2" Dia., 15"
Length, 5-1/4" Rise, 1-1/4" Drop. |
$104.95 |
|
|
54977 |
Tow Beast®, W.D. Shank,
Rating 1,700 lbs. (TW), 2-1/2" Dia., 15" Length, 8-1/4" Rise,
5-3/4" Drop |
$129.95 |
|
|
|
|
|
|
WD HITCH BALLS
are required and are
not included with the WD kits. Check the trailer’s coupler to determine
whether a 2" or 2-5/16" diameter ball is required.
|
Ball Dia. |
Finish |
Shank Dia. |
Shank Length |
G.T.W. |
WT |
Price |
|
|
A |
Chrome
|
Zinc
|
B |
C |
G.V.W.R. |
|
|
|
|
2" |
19263 |
|
1-1/4" |
2-1/4" |
8,000 |
2.0 |
$15.35 |
|
|
|
19163 |
1-1/4" |
2-1/4" |
8,000 |
2.0 |
$13.92 |
|
|
2-5/16" |
19286 |
|
1-1/4" |
2-1/4" |
10,000 |
4.0 |
$17.55 |
|
|
|
19186 |
1-1/4" |
2-1/4" |
10,000 |
4.0 |
$14.25 |
|
|
19285 |
|
1-1/4" |
2-1/4" |
14,000 |
4.0 |
$19.25 |
|
|
|
|
|
|
SWAY CONTROL BARS
|
|
Many trailers are prone to sway problems due to windy conditions or other
factors. Sway Control Bars work between the hitch and the trailer to resist
sway. All Hidden Hitch weight distributing heads are equipped to accept sway
controls.
|
|
PT# 40010
Includes All Parts Shown Above
|
PT# 40011
Included W/HH40010
|
|
|
|
Part
# |
Qty. |
Description |
WT |
Price |
|
|
40010
|
1
|
Sway
Control - can be used on Right or Left Side
(Boxed) |
15.0 |
$98.95 |
|
|
40014
|
1
|
Sway
Control Ball Mount Bar, Weld On |
1.50 |
$3.25 |
|
|
3473 |
1
|
Trailer Tongue Plate Ball |
2.0 |
$19.95 |
|
|
|
|
|
POLE TONGUE ADAPTER KIT
|
|
  Allows weight distribution to be used
with pole tongue style trailers.
|
|
Part
# |
Qty. |
Description |
WT |
Price |
|
|
4425 |
1
|
Pole Tongue Adapter Kit |
8.00 |
$69.25 |
|
|
|
|
|
|
