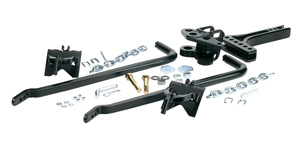

The Hidden Hitch
Round Bar Weight-Distributing Hitch features easy-to-use
adjusting blocks for easier and faster ball mount angle
adjustment. It includes a one-piece cast head, snap-up
brackets and chains; spring bars include an integrated cam
for use with optional dual cam sway control. In addition to
the changes in the head, the Heavy-Duty Round Bar
Weight-Distributing Kit includes the highest rated spring
bars per class in the industry. They also feature an
integrated cam for easy set upwith the optional Dual Cam
High-Performance Sway Control. Other features include 9-link
chains for easier set up on larger trailer frames and
innovative snap-up brackets designed for superior strength
and durability.
|
|

|
|
|
- Includes Shank 63970
- Easy-to-use
adjusting washer
- One piece cast head
- Rated up to 1,000
lbs. TW and 10,000 lbs. GTW
|
|
|
|
|
|
Part # |
Qty. |
Description |
WT |
Price |
|
|
49555 |
1 |
Heavy-Duty Round Bar
Bolt-Together Wt.-Dist. Kit w/63970 Shank (Standard), 10,000 lbs. (GTW),
550 lbs. (TW) |
65.0 |
$339.19 |
 |
|
49556 |
1 |
Heavy-Duty Round Bar
Bolt-Together Wt.-Dist. Kit w/63970 Shank (Standard), 10,000 lbs. (GTW),
750 lbs. (TW) |
68.0 |
$339.19 |
|
|
49557 |
1 |
Heavy-Duty Round Bar
Bolt-Together Wt.-Dist. Kit w/63970 Shank (Standard), 10,000 lbs. (GTW),
1,000 lbs. (TW) |
71.0 |
$339.19 |
|
|
|
|
For Sway Control > Click
Here |
|
|
|
|
|
|
|
WEIGHT
DISTRIBUTION SHANKS
|
|
|
|
All
Trunnion Weight Distribution Kits require a shank bar sold separately. In
some cases, a longer shank or a deeper drop is required. Hidden Hitch
provides a variety of alternative shank sizes to choose from.
|
|
|
|
Shank
Part # |
Capacity |
Length
(L1)
|
Style |
With Round Bar Style
Head |
With Trunnion Style
Head |
Price |
|
|
Length
R.B.
(L2) |
Drop R.B.
(D) |
Rise R.B.
(R) |
Length
T.
(L2) |
Drop R.B.
(D) |
Rise T.
(R) |
|
3210 |
1,400 |
10" |
1 |
12.5" |
2.375" |
5.625" |
11.875" |
2.375" |
6.375" |
$94.95 |
 |
|
3211 |
1,400 |
11" |
2 |
12.5" |
5.625" |
8.875" |
11.875" |
4.875" |
9.625" |
$97.95 |
|
|
3212 |
1,400 |
12" |
1 |
14.5" |
2.375" |
5.625" |
13.875" |
1.625" |
6.375" |
$99.95 |
|
|
3214 |
1,400 |
14" |
1 |
16.5" |
2.375" |
5.625" |
15.875" |
2.375" |
6.375" |
$99.95 |
|
|
3215 |
1,400 |
11" |
2 |
13.5" |
6.875" |
10.125" |
13.125" |
6.875" |
10.875" |
$99.95 |
|
|
3344 |
1,400 |
11" |
3 |
13.5" |
8.75" |
N/A |
12.875" |
8.75" |
N/A |
$104.95 |
|
|
|
|
|
|
ADJUSTABLE
SHANK
|
Part
# |
Description |
TOTAL
HT. ADJ |
LENGTH
(L) |
RISE
(R) |
DROP
(D) |
RATING |
Price |
|
|
63970 |
Adjustable Shank 2" Sq. |
6-3/4" |
13" |
6" |
1-1/4" |
1,400
/ 14,000 |
$97.69 |
|
|
|
|
|
Tow Beast
WD SHANK
Designed for use with the Tow
BeastClass V Receiver and Tow
Beast Trunnion
Weight Distributing system.
This unit is rated at 17,000 lbs. Weight Distributing.
|
Part
# |
Description |
Price |
|
|
54976 |
Tow
Beast, W.D. Shank, Rating 1,700 lbs. (TW), 2-1/2" Dia., 15"
Length, 5-1/4" Rise, 1-1/4" Drop. |
$120.69 |
|
|
54977 |
Tow
Beast, W.D. Shank,
Rating 1,700 lbs. (TW), 2-1/2" Dia., 15" Length, 8-1/4" Rise,
5-3/4" Drop |
$149.44 |
|
|
|
|
|
|
WD HITCH BALLS
are required and are
not included with the WD kits. Check the trailer’s coupler to determine
whether a 2" or 2-5/16" diameter ball is required.
|
Ball Dia. |
Finish |
Shank Dia. |
Shank Length |
G.T.W. |
WT |
Price |
|
|
A |
Chrome
|
B |
C |
G.V.W.R. |
|
|
|
|
2" |
63830 |
1-1/4" |
2-3/4" |
8,000 |
2.0 |
$17.65 |
|
|
|
2-5/16" |
63834 |
1-1/4" |
2-3/4" |
12,000 |
4.0 |
$20.18 |
|
|
63836 |
1-1/4" |
2-3/4" |
14,000 |
4.0 |
$22.14 |
|
|
63838 |
1-1/4" |
2-3/4" |
17,000 |
4.0 |
$24.95 |
|
|
|
|
|
|
|
SWAY CONTROL BARS
|
|
Many trailers are prone to sway problems due to windy conditions or other
factors. Sway Control Bars work between the hitch and the trailer to resist
sway. All Hidden Hitch weight distributing heads are equipped to accept sway
controls.
|
|
PT#
3360
Includes All Parts Shown Above
|
PT# 40011
Included W/HH40010
|
|
|
|
Part
# |
Qty. |
Description |
WT |
Price |
|
|
3400
|
1
|
Sway
Control - can be used on Right or Left Side
(Boxed) |
15.0 |
$96.66 |
|
|
26660 |
1
|
Sway
Control Ball Mount Bar, Weld On |
1.50 |
$113.79 |
|
|
3473 |
1
|
Trailer Tongue Plate Ball |
2.0 |
$22.94 |
|
|
|
|
|
POLE TONGUE ADAPTER KIT
|
|
A Pole Tongue Adapter is used as a mounting
platform for the Lift Brackets of a Weight Distributing Hitch Systems when a
trailer has a pole or straight tongue rather
than an A-frame Tongue. |
|

|
|
Part
# |
Qty. |
Description |
Gross Trailer
Wt. |
Tongue Wt. |
WT |
Price |
|
|
3380 |
1
|
Pole Tongue Adapter Kit |
7,500 lbs |
750 lbs |
25.00 |
$84.95 |
|
|
58393 |
1
|
Pole Tongue Adapter Kit |
14,000 lbs. * 12,000 lbs ** |
1,400 lbs * 1,200 lbs. ** |
25.00 |
$189.95 |
|
|
|
|
|
|
