The Strait-Line Hitch consists of our patented Dual Cam
High-Performance Sway Control and our High-Performance
Weight-Distributing System in one easy-to-install package.
This is the ultimate hitch in detail and by design. No other
hitch gives the driver the control this one does at a
reasonable price. The Strait-Line Hitch was given this name
as its pro-active design literally forces the trailer to
stay in a straight line behind the tow vehicle.
|
- Simple installation and
adjustment
- Fully automatic and
self-centering
- Hooking up spring bars
automatically hooks up sway control
- Reduced noise
- No U-bolts to conflict
with bottle racks or other A-frame mounted items
- Specific attachment
reference points provided
- Easy adjustment of
centerline
- No need to relocate
items on top of A-frame to install Dual Cam
High-Performance Sway Control
|
|
|
|

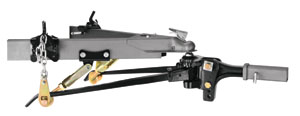

STRAIT-LINE TRUNNION BAR
W/SHANK
|
|
|
Part # |
Qty. |
Description |
WT |
Price |
|
|
40299 |
1 |
Strait-Line 600 lbs.
Trunnion Bar Hitch w/Shank
(includes #49540, #63970 & #26102) |
107.0 |
$464.95 |
|
|
40300 |
1 |
Strait-Line 800 lbs.
Trunnion Bar Hitch w/Shank
(includes #49541, #63970 & #26102) |
107.0 |
$464.95 |
|
|
40301 |
1 |
Strait-Line 1200 lbs.
Trunnion Bar Hitch w/Shank
(includes #49557, #63970 & #26102) |
107.0 |
$464.95 |
|
|
|
|
For Shanks, Hitch Balls or Sway Control > Click
Here |
|
|
|
|
|
|

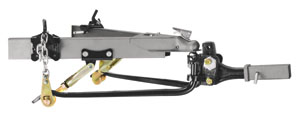

STRAIT-LINE
ROUND BAR W/SHANK |
|
Part # |
Qty. |
Description |
WT |
Price |
|
|
40296 |
1 |
Strait-Line 600 lbs.
Round Bar Hitch w/Shank
(includes #49540, #63970 & #26102) |
92.0 |
$464.95 |
|
|
40297 |
1 |
Strait-Line 800 lbs.
Round Bar Hitch w/Shank
(includes #49541, #63970 & #26102) |
95.0 |
$464.95 |
|
|
40298 |
1 |
Strait-Line 1000 lbs.
Round Bar Hitch w/Shank
(includes #49557, #63970 & #26102) |
98.0 |
$464.95 |
|
|
|
|
For Shanks, Hitch Balls or Sway Control > Click
Here |
|
|
|
|
|
WEIGHT
DISTRIBUTION SHANKS
|
|
|
|
All
Trunnion Weight Distribution Kits require a shank bar sold separately. In
some cases, a longer shank or a deeper drop is required. Hidden Hitch
provides a variety of alternative shank sizes to choose from.
|
|
|
|
Shank
Part # |
Capacity |
Length
(L1)
|
Style |
With Round Bar Style
Head |
With Trunnion Style
Head |
Price |
|
|
Length
R.B.
(L2) |
Drop R.B.
(D) |
Rise R.B.
(R) |
Length
T.
(L2) |
Drop R.B.
(D) |
Rise T.
(R) |
|
3210 |
1,400 |
10" |
1 |
12.5" |
2.375" |
5.625" |
11.875" |
2.375" |
6.375" |
$79.95 |
 |
|
3211 |
1,400 |
11" |
2 |
12.5" |
5.625" |
8.875" |
11.875" |
4.875" |
9.625" |
$89.95 |
|
|
3212 |
1,400 |
12" |
1 |
14.5" |
2.375" |
5.625" |
13.875" |
1.625" |
6.375" |
$94.95 |
|
|
3213 |
1,400 |
12" |
2 |
14.5" |
5.625" |
8.875" |
13.875" |
5.625" |
9.625" |
$94.95 |
|
|
3214 |
1,400 |
14" |
1 |
16.5" |
2.375" |
5.625" |
15.875" |
2.375" |
6.375" |
$99.95 |
|
|
3215 |
1,400 |
11" |
2 |
13.5" |
6.875" |
10.125" |
13.125" |
6.875" |
10.875" |
$94.95 |
|
|
3344 |
1,400 |
11" |
3 |
13.5" |
8.75" |
N/A |
12.875" |
8.75" |
N/A |
$89.95 |
|
|
|
|
|
ADJUSTABLE
SHANK
 |
|
Part
# |
Description |
TOTAL
HT. ADJ |
LENGTH
(L) |
RISE
(R) |
DROP
(D) |
RATING |
Price |
|
|
63970 |
Adjustable Shank 2" Sq. |
6-3/4" |
13" |
6" |
1-1/4" |
1,400
/ 14,000 |
$84.95 |
|
|
|
TOW
BEAST WD SHANK
Designed for use with the Tow Beast
Class V Receiver and Tow Beast Trunnion Weight Distributing system.
This unit is rated at 17,000 lbs. Weight Distributing.
|
|
Part
# |
Description |
Price |
|
|
54976 |
Tow
Beast®, W.D. Shank, Rating 1,700 lbs. (TW), 2-1/2" Dia., 15"
Length, 5-1/4" Rise, 1-1/4" Drop. |
$104.95 |
|
|
54977 |
Tow Beast®, W.D. Shank,
Rating 1,700 lbs. (TW), 2-1/2" Dia., 15" Length, 8-1/4" Rise,
5-3/4" Drop |
$129.95 |
|
|
|
|
|
|
WD HITCH BALLS
are required and are
not included with the WD kits. Check the trailer’s coupler to determine
whether a 2" or 2-5/16" diameter ball is required.
|
Ball Dia. |
Finish |
Shank Dia. |
Shank Length |
G.T.W. |
WT |
Price |
|
|
A |
Chrome
|
Zinc
|
B |
C |
G.V.W.R. |
|
|
|
|
2" |
19263 |
|
1-1/4" |
2-1/4" |
8,000 |
2.0 |
$15.35 |
|
|
|
19163 |
1-1/4" |
2-1/4" |
8,000 |
2.0 |
$13.92 |
|
|
2-5/16" |
19286 |
|
1-1/4" |
2-1/4" |
10,000 |
4.0 |
$17.55 |
|
|
|
19186 |
1-1/4" |
2-1/4" |
10,000 |
4.0 |
$14.25 |
|
|
19285 |
|
1-1/4" |
2-1/4" |
14,000 |
4.0 |
$19.25 |
|
|
|
|
|
|
SWAY CONTROL BARS
|
|
Many trailers are prone to sway problems due to windy conditions or other
factors. Sway Control Bars work between the hitch and the trailer to resist
sway. All Hidden Hitch weight distributing heads are equipped to accept sway
controls.
|
|
PT# 40010
Includes All Parts Shown Above
|
PT# 40011
Included W/HH40010
|
|
|
|
Part
# |
Qty. |
Description |
WT |
Price |
|
|
40010
|
1
|
Sway
Control - can be used on Right or Left Side
(Boxed) |
15.0 |
$98.95 |
|
|
40014
|
1
|
Sway
Control Ball Mount Bar, Weld On |
1.50 |
$3.25 |
|
|
3473 |
1
|
Trailer Tongue Plate Ball |
2.0 |
$19.95 |
|
|
|
|
|
POLE TONGUE ADAPTER KIT
|
|
  Allows weight distribution to be used
with pole tongue style trailers.
|
|
Part
# |
Qty. |
Description |
WT |
Price |
|
|
4425 |
1
|
Pole Tongue Adapter Kit |
8.00 |
$69.25 |
|
|
|
|
|
|
